Khoom Piav Qhia

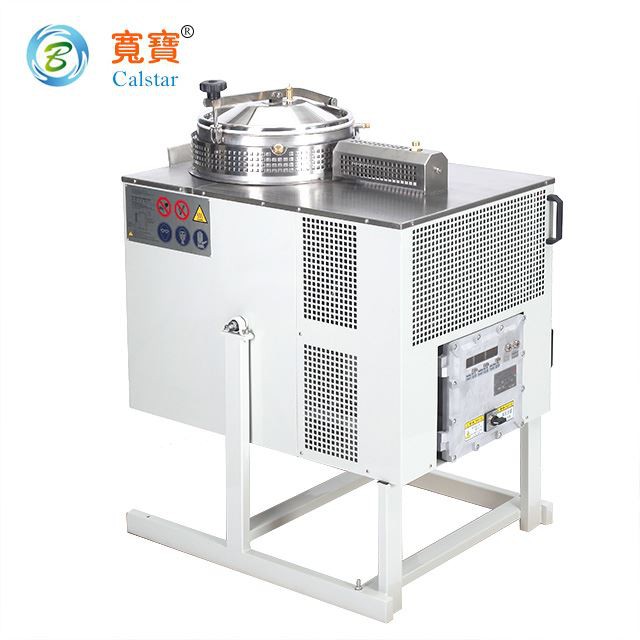

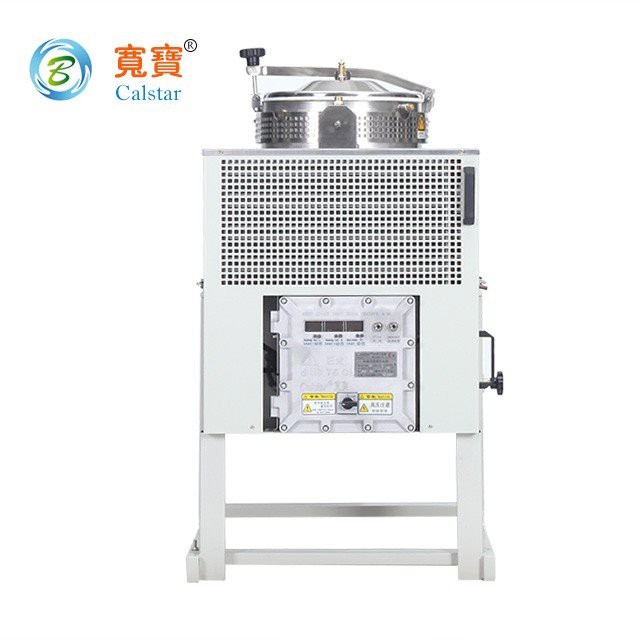

A90Ex, cov kuab tshuaj rov zoo tseem, tau ua tiav nrog Suav cov qauv pov thawj tawg (CNEX: Ex d IIB T2 Gb, daim ntawv pov thawj No. CNEx16.2110X) thiab European tus qauv (ATEX). Kev tsim ntawm Tilting-type thiab cua txias system yog rau kev ua haujlwm zoo dua ntawm cov kuab tshuaj rov qab los. nws tau tsim nrog cua txias condenser. Tom qab ua kom txias thiab txias rau qhov sib thooj 3.5 teev, cov kuab tshuaj khib nyiab yuav huv thiab npaj rov siv dua.
A90Ex cov kuab tshuaj rov zoo tseem tuaj yeem rov qab tau ib puag ncig 500L cov tshuaj khib nyiab los ntawm kev khiav 24 teev.
Duab Duab
 |  |
Cov duab ntxaws
Cov Ntaub Ntawv
Imput ntim | 90 L | Ntev | 1050 hli |
Peev Xwm ntawm Tank | 120 L | Dav | 750 hli |
Muaj peev xwm hloov cov roj cua sov | 36 L | Qhov siab | 1280 hli |
Lub hwj chim ntawm lub rhaub | 8.0 KWG | Qhov hnyav | 175 KWG |
Fais fab kiv cua | 0.09 KWG | Temp. ntawm kev ua haujlwm | 50~190 °C |
Max zog | 8.2 KWG | Qhov zoo tshaj chav sov. | 5~30 °C |
Max tam sim no | 12.3 A | Suab nrov | cav 65db |
Fais fab mov | 380V AC/50 HZ | Voltage ntawm chav tswj | 24 V DC |
Cua sov txoj kev | Indirect cua sov los ntawm tshav kub hloov roj | Lub sij hawm voj voog | ncig 3.5 teev |
Tus nqi rov zoo | 95% | Cua txias | Cua txias |
Hnyav imput | Phau ntawv (tsis siv neeg imput chav yog ntxiv) | Cov ntaub ntawv ntawm rooj plaub | Carbon hlau nrog xim, lossis SUS304 |
Chav tsev nqus tsev | Tsis muaj (kev xaiv ntxiv) | Khoom ntawm lub tank | SUS304, ob txheej |
NCO TSEG: Cov txiaj ntsig tau teev tseg saum toj no yog nyob rau hauv cov xwm txheej zoo hauv chav kuaj, tsuas yog rau koj siv. Cov ntaub ntawv muaj tiag yuav me ntsis
kev sib txawv vim qhov sib txawv ntawm cov ntsiab lus pov tseg, cov ntsiab lus kub ntawm hnyav, chav sov, viscosity thiab lwm yam.

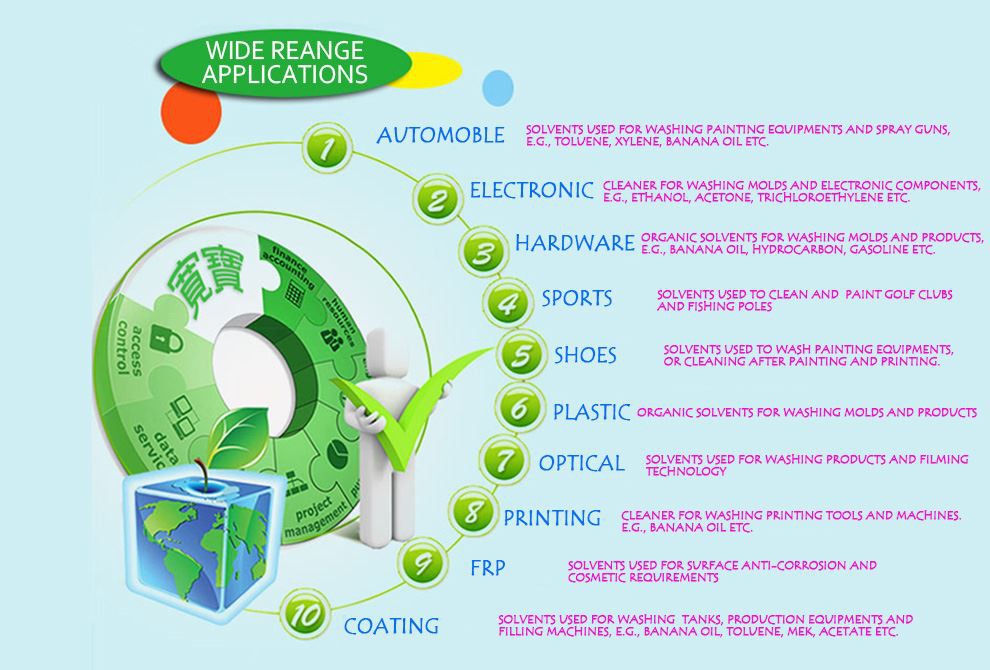

Cov ntawv thov pov tseg cov kuab tshuaj hnyav rov los tsev
8 cov txiaj ntsig ntawm cov kuab tshuaj recycler
Cov yam ntxwv tseem ceeb ntawm cov khoom siv rov ua kom rov zoo dua qub
Ntim
Seaworth txheem ntoo lub thawv.
Kev xa khoom
1. 5 hnub tom qab them nyiaj yog cov khoom siv hauv Tshuag, lossis 30 hnub tom qab them nyiaj yog cov khoom siv kho.
Tuam txhab Profile
Daim ntawv pov thawj
Peb Cov Neeg Siv Khoom
FAQ
1. Koj puas yog tuam txhab lag luam lossis chaw tsim khoom?
Peb lub tuam txhab yog lub tuam txhab ua lag luam saum toj kawg nkaus tshwj xeeb hauv cov tshuab ua kom rov zoo rau 27-xyoo.
2. Koj qhov kev tiv thaiv ntev npaum li cas?
Nws kav peb xyoos rau kev ua kom tiav cov txheej txheem rov ua haujlwm tshwj tsis yog Tshav kub hloov roj, Gaskets.
3. Koj puas tuaj yeem ua OEM thiab ODM?
Yog, OEM thiab ODM tau txais tos ob leeg nrog peb. Tsis tas li cov neeg yuav khoom daim ntawv muaj muaj thiab.
4. Daim ntawv pov thawj twg yog koj cov khoom ua raws?
Peb lub koos pij tawj rov ua haujlwm tau ua raws li Suav cov qauv pov thawj tawg (CNEX), European tus qauv (ATEX) thiab CE. Thiab peb lub tuam txhab tau tsim nyog los ntawm ISO9001 thiab ISO14001.
5. Yam kev them nyiaj twg koj txais?
L/C thiab T/T yog ob qho tib si siv tau.
