Khoom Taw Qhia
A10Ex, qhia tshwj xeeb uas tsim cov kuab tshuaj recycler rau me me ntawm cov organic hnyav rov qab. Tilting-type thiab air-cooled condensing system, kev nyab xeeb qauv tsim los ntawm Suav cov txheej txheem pov thawj tawg (CNEX: Ex d IIB T2 Gb, daim ntawv pov thawj No. CNEx16.2108X) thiab European tus qauv (ATEX). Tom qab ua kom txias thiab txias rau qhov ze 1.5 teev, ntxuav cov kuab tshuaj organic yuav npaj rau rov siv dua.
A10Ex hnyav tshuab ntxuav yog tsim rau me me ntawm cov organic hnyav kom rov ua dua tshiab. Nws tuaj yeem lis 100L pov tseg cov kuab tshuaj los ntawm kev ua haujlwm 24 teev nyob rau ib hnub.

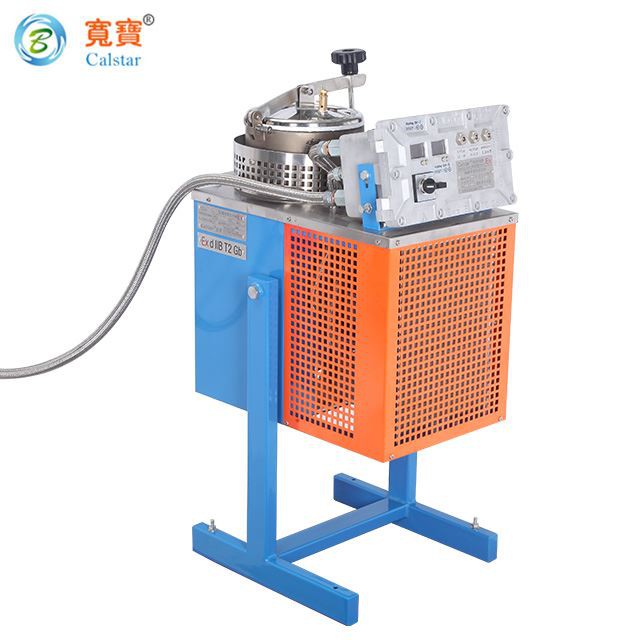

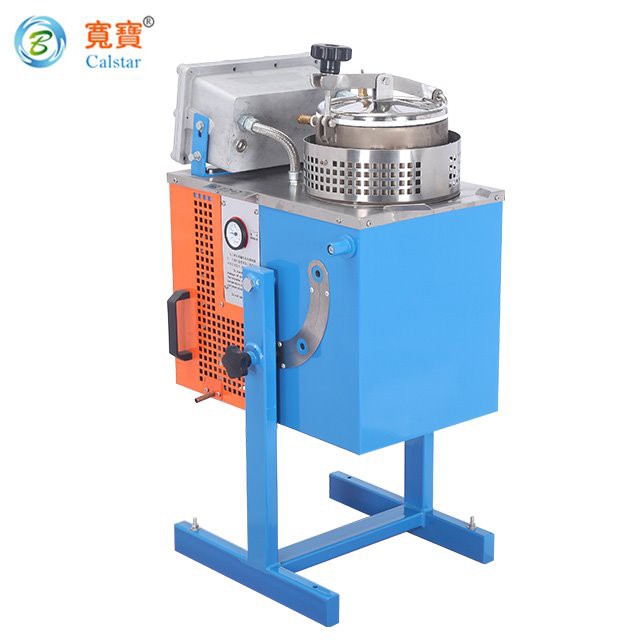

Duab Duab
 |  |
Cov duab ntxaws
Cov ntaub ntawv qhia
Imput ntim | 10 L | Ntev | 655 hli |
Peev Xwm ntawm Tank | 15 L | Dav | 505 hli |
Muaj peev xwm hloov cov roj cua sov | 5.5 L | Qhov siab | 1050 hli |
Lub hwj chim ntawm lub rhaub | 2.0 KWG | Qhov hnyav | 62kg ua |
Fais fab kiv cua | 0.09 KWG | Temp. ntawm kev ua haujlwm | 50~190 °C |
Max zog | 2.2 KWG | Qhov zoo tshaj chav sov. | 5~30 °C |
Max tam sim no | 9.5 A | Suab nrov | cav 65db |
Fais fab mov | 220V AC/50 HZ | Voltage ntawm chav tswj | 24 V DC |
Cua sov txoj kev | Indirect cua sov los ntawm tshav kub hloov roj | Lub sij hawm voj voog | nyob ib ncig ntawm 1.5 Teev |
Tus nqi rov zoo | 95% | Cua txias | Cua txias |
Hnyav imput | Phau ntawv (tsis siv neeg imput chav yog ntxiv) | Cov ntaub ntawv ntawm rooj plaub | Carbon hlau nrog xim |
Chav tsev nqus tsev | Tsis muaj (kev xaiv ntxiv) | Khoom ntawm lub tank | SUS304, ob txheej |
NCO TSEG: Cov txiaj ntsig tau teev tseg saum toj no yog nyob rau hauv cov xwm txheej zoo hauv chav kuaj, tsuas yog rau koj siv. Cov ntaub ntawv muaj tiag yuav muaj qhov sib txawv me ntsis vim qhov sib txawv ntawm cov ntsiab lus pov tseg, cov ntsiab lus kub ntawm qhov hnyav, chav sov, viscosity thiab lwm yam.
Daim ntawv teev cov tshuaj hnyavlos ntawm cov khoom siv rov ua dua tshiab
8 cov txiaj ntsig ntawm cov tshuab ua kom dej txias
Nta Tseem Ceebntawm qhov hnyav distillation unit
Ntim thiab Xa
Ntim
1. Seaworthy txheem ntoo lub thawv.
Kev xa khoom
1. 5 hnub tom qab them nyiaj yog cov khoom siv hauv Tshuag, lossis 30 hnub tom qab them nyiaj yog cov khoom siv kho.
Tuam txhab profile
Ntawv pov thawj
Peb cov neeg siv khoom
FAQ
1. Koj puas tuaj yeem ua pov thawj tias koj yog lub Hoobkas?
Koj tuaj yeem hla peb lub vev xaib 'www.solventrecyclingsystem.com' los tshuaj xyuas peb cov npe lag luam thiab daim ntawv pov thawj.
2. Puas muaj khoom siv rau koj lub tshuab?
Yog, muaj peb yam khoom siv, cov roj cua sov thiab cov foob foob.
3. Koj puas tuaj yeem tsim lub tshuab yam tsis muaj cov ntaub ntawv ntawm koj lub tuam txhab?
Yog, peb tuaj yeem tsim cov tshuab tsis-logo tsis muaj nqi ntxiv.
4. Ntev npaum li cas koj lub tuam txhab tsim nyog los ntawm CE?
Peb cov tshuab tau ua raws li daim ntawv pov thawj CE rau ntau dua 20 xyoo.
5. Koj puas tuaj yeem hais qhia T/T them nyiaj?
Feem ntau 50% kev them nyiaj thiab 50% tshuav nyiaj ua ntej xa lub tshuab.
