Khoom Taw Qhia

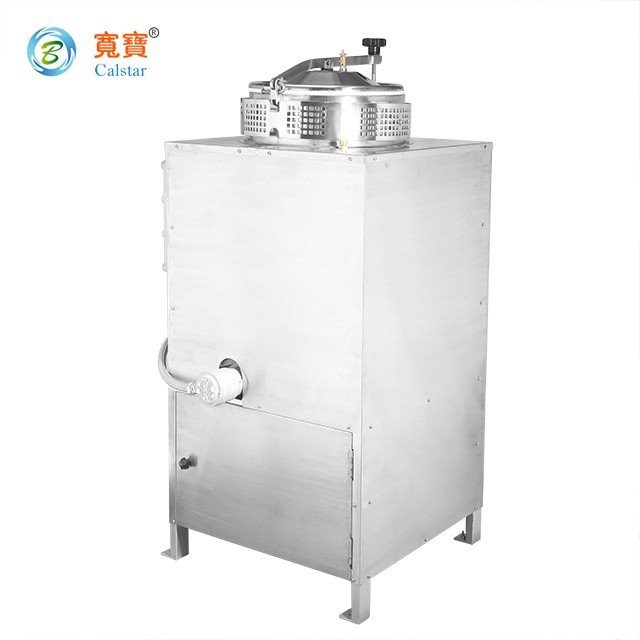

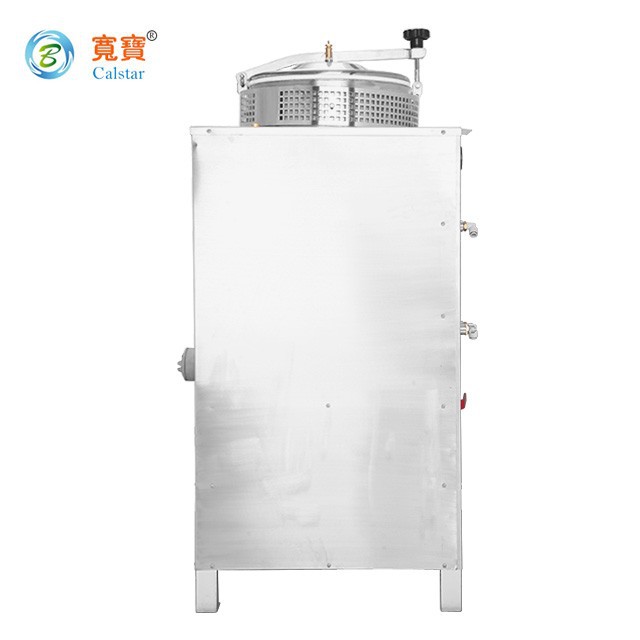

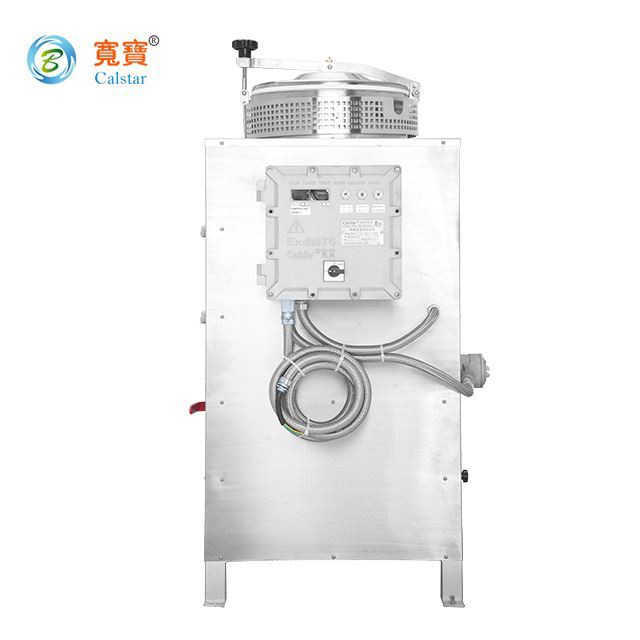

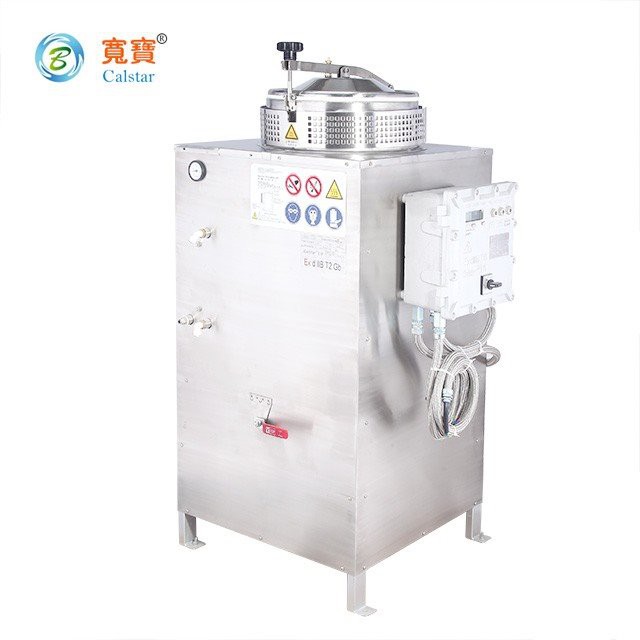

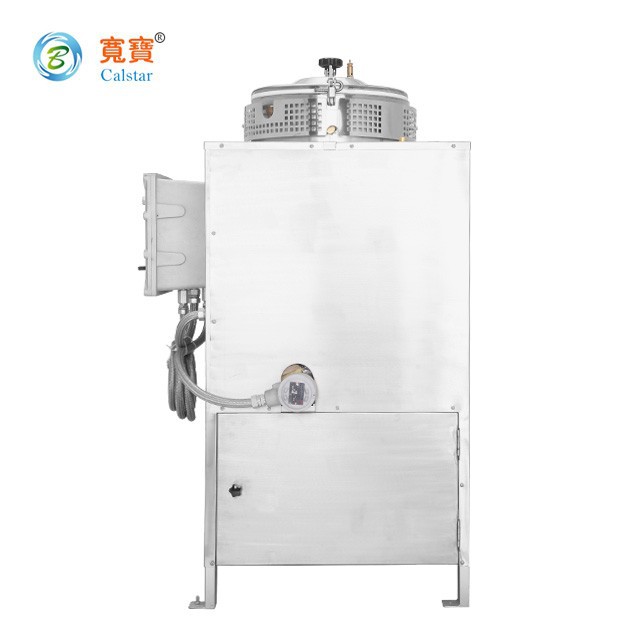

B90Ex, cov khoom siv cawv cawv, ua raws li Suav cov qauv pov thawj tawg (CNEX: Ex d IIB T2 Gb, daim ntawv pov thawj No. CNEx16.2113X) thiab European tus qauv (ATEX). Ob txheej txheej tank, dej txias txias ua kom txias, qauv ruaj ntseg yog cov qauv tsim tshwj xeeb suav nrog. Tom qab ua kom txias thiab txias rau qhov sib thooj 4 teev, cov tshuaj khib nyiab yuav raug lim thiab npaj rov siv dua.
B90Ex cov tshuab ua kom huv yog tsim rau nruab nrab cov organic hnyav kom rov ua dua tshiab. Nws tuaj yeem rov ua dua ib puag ncig 500L cov kuab tshuaj khib nyiab txhua hnub los ntawm kev ua haujlwm 24 teev.
Duab Duab
 |  |
Cov duab ntxaws
Cov ntaub ntawv qhia
Lub ntim tawm tswv yim | 90 L | Ntev | 697 hli |
Peev Xwm ntawm Tank | 120 L | Dav | 937 hli |
Muaj peev xwm hloov cov roj cua sov | 36 L | Qhov siab | 1480 hli |
Lub hwj chim ntawm lub rhaub | 8.0 KWG | Qhov hnyav | 151kg ua |
Max zog | 8.1 KWG | Temp. ntawm kev ua haujlwm | 50~190 °C |
Max tam sim no | 12.3 A | Qhov zoo tshaj chav sov. | 5~30 °C |
Fais fab mov | 380V AC/50 HZ | Suab nrov | cav 50db |
Tus nqi rov zoo | 95% | Voltage ntawm chav tswj | 24 V DC |
Cua sov txoj kev | Indirect cua sov los ntawm tshav kub hloov roj | Lub sij hawm voj voog | ncig 4 teev |
Ntws dej txias | & gt; 120 L/H | Cua txias | Dej txias |
Max siab ntawm Condenser | 30 Pub | Temp. ntawm dej txias | 25 ° C pom zoo |
Hnyav cov tswv yim | Los ntawm txhais tes (tsis siv neeg chav nyob yog muaj) | Kev Ua Haujlwm Temp. ntawm Condenser | -160°C~+200°C |
Chav tsev nqus tsev | Tsis muaj (kev xaiv ntxiv) | Cov ntaub ntawv ntawm rooj plaub | Carbon hlau nrog xim, lossis SUS304 |
Khoom ntawm lub tank | SUS304, ob txheej |
NCO TSEG: Cov txiaj ntsig tau teev tseg saum toj no yog nyob rau hauv cov xwm txheej zoo hauv chav kuaj, tsuas yog rau koj siv. Cov ntaub ntawv muaj tiag yuav muaj qhov sib txawv me ntsis vim qhov sib txawv ntawm cov ntsiab lus pov tseg, cov ntsiab lus kub ntawm qhov hnyav, chav sov, viscosity thiab lwm yam.
Daim ntawv teev cov tshuaj hnyavlos ntawm cov tshuaj ntxuav kom huv
8 cov txiaj ntsig ntawm chav ua kom huv huv
Nta Tseem Ceebntawm cov tshuaj ntxuav tsev hnyav
Ntim thiab Xa
Ntim
1. Seaworthy txheem ntoo lub thawv.
Kev xa khoom
1. 5 hnub tom qab them nyiaj yog cov khoom siv hauv Tshuag, lossis 30 hnub tom qab them nyiaj yog cov khoom siv kho.
Tuam txhab profile
Ntawv pov thawj
Peb cov neeg siv khoom
FAQ
1. Koj yuav xa koj cov lus hais li cas?
Tsis raug cai email yog txoj hauv kev. Kuj tseem muaj kev sib tham hauv apps zoo rau peb ib yam yog tias koj xav tau.
2. Koj puas tuaj yeem xa qee qhov khoom seem lossis cov khoom pabcuam tuaj ua khoom plig?
Qee zaum peb muab qee yam khoom plig rau cov neeg siv khoom nyob ntawm cov qauv thiab ntau.
3. Yuav ua li cas yog tias kuv ncua kev them nyiaj tshuav lossis sijhawm kawg?
Peb tseem yuav ua raws peb cov phiaj xwm kev tsim khoom kom ua tiav koj daim ntawv xaj. Thiab tos koj daim ntawv ceeb toom ntxiv.
4. Koj puas siv ntoo rau pob?
Tsis yog, peb siv plywood hloov ntoo.
5. Koj puas tuaj yeem muab cov ntaub ntawv tshaj tawm los ntawm lub tuam txhab thib peb?
Yog, peb tuaj yeem muab daim ntawv tshaj tawm kev tshuaj xyuas lub Hoobkas. Tab sis nws yuav tsub qee tus nqi ntxiv.
Cim npe nrov: cawv distillation khoom, Tuam Tshoj, lwm tus neeg, manufacturers, hoobkas, customized, nqe, pricelist
