Khoom Taw Qhia

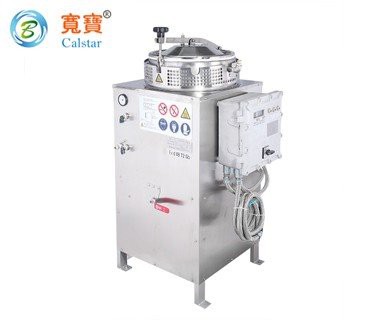

B40Ex, cov tshuab ua kom hnyav dua qub. Ob txheej txheej tank thiab dej txias ua kom txias, cov qauv ruaj ntseg tau tsim los ntawm Suav cov txheej txheem pov thawj tawg (CNEX: Ex d IIB T2 Gb, daim ntawv pov thawj No. CNEx16.2113X) thiab European tus qauv (ATEX). Tom qab ua kom txias thiab txias rau qhov ze li 3 teev, ntxuav cov kuab tshuaj organic yuav npaj rau rov siv dua.
B40Ex lub tshuab ua kom huv yog tsim rau nruab nrab cov organic hnyav kom rov ua dua tshiab. Nws lub peev xwm niaj hnub yog 300L los ntawm kev ua haujlwm 24 teev.
Duab Duab
 |  |

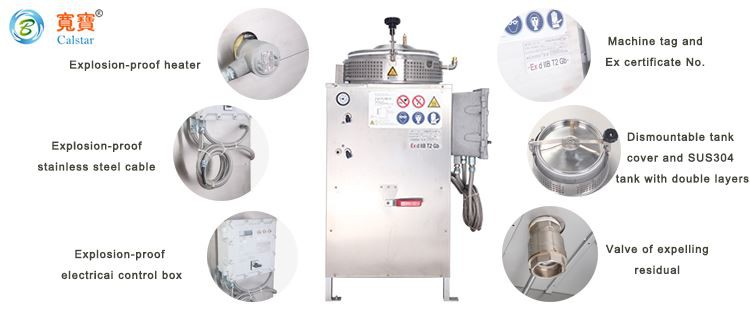

Cov duab ntxaws
Cov ntaub ntawv qhia
Imput ntim | 40 L | Ntev | 587 hli |
Peev Xwm ntawm Tank | 55 L | Dav | 827 hli |
Muaj peev xwm hloov cov roj cua sov | 21 L | Qhov siab | 1202 hli |
Lub hwj chim ntawm lub rhaub | 4.0 KWG | Qhov hnyav | 93kg ua |
Max zog | 4.1 KWG | Temp. ntawm kev ua haujlwm | 50~190 °C |
Max tam sim no | 18.64 A | Qhov zoo tshaj chav sov. | 5~30 °C |
Fais fab mov | 220V AC/50 HZ | Suab nrov | cav 50db |
Tus nqi rov zoo | 95% | Voltage ntawm chav tswj | 24 V DC |
Cua sov txoj kev | Indirect cua sov los ntawm tshav kub hloov roj | Lub sij hawm voj voog | ncig 3 teev |
Ntws dej txias | & gt; 120 L/H | Cua txias | Dej txias |
Max siab ntawm Condenser | 30 Pub | Temp. ntawm dej txias | 25 ° C pom zoo |
Hnyav imput | Los ntawm txhais tes (tsis siv neeg lub tsev imput yog muaj) | Kev Ua Haujlwm Temp. ntawm Condenser | -160°C~+200°C |
Chav tsev nqus tsev | Tsis muaj (kev xaiv ntxiv) | Cov ntaub ntawv ntawm rooj plaub | Carbon hlau nrog xim, lossis SUS304 |
Khoom ntawm lub tank | SUS304, ob txheej |
NCO TSEG: Cov txiaj ntsig tau teev tseg saum toj no yog nyob rau hauv cov xwm txheej zoo hauv chav kuaj, tsuas yog rau koj siv. Cov ntaub ntawv muaj tiag yuav muaj qhov sib txawv me ntsis vim qhov sib txawv ntawm cov ntsiab lus pov tseg, cov ntsiab lus kub ntawm qhov hnyav, chav sov, viscosity thiab lwm yam.
Daim ntawv teev cov tshuaj hnyavlos ntawm cov kuab tshuaj kom huv
8 cov txiaj ntsig ntawm cov tshuab ua kom huv huv
Nta Tseem Ceebntawm cov tshuaj ua kom huv huv
Ntim thiab Xa
Ntim
1. Seaworthy txheem ntoo lub thawv.
Kev xa khoom
1. 5 hnub tom qab them nyiaj yog cov khoom siv hauv Tshuag, lossis 30 hnub tom qab them nyiaj yog cov khoom siv kho.
Tuam txhab profile
Ntawv pov thawj
Peb cov neeg siv khoom
FAQ
1. Cov ntaub ntawv twg koj xav tau rau cov lus hais sai?
Cov ntaub ntawv yooj yim xws li pov tseg lub npe hnyav, lub peev xwm niaj hnub, feem pua ntawm kev sib kis thiab koj lub hom phiaj. Tom qab ntawd peb yuav xa koj cov lus hais tsis pub dhau 4-teev.
2. Puas muaj MOQ yog tias lub tshuab tau kho?
Peb zoo siab tos txais txhua lub tshuab tshwj xeeb. Thiab tsis muaj MOQ txhua.
3. Koj yuav ua dab tsi yog tias kuv xav kom nrawm tsim khoom thaum muaj xwm txheej ceev?
Ua ntej tshaj plaws peb tau koom tes zoo los tshuaj xyuas peb lub peev xwm tsim khoom. Thiab ua peb qhov zoo tshaj plaws kom tau raws li koj lub sijhawm. Txawm li cas los xij, yuav muaj qee qhov nqi ntxiv.
4. Yam khoom twg koj siv rau lub tshuab ntim khoom?
Peb siv plywood los ntim peb cov tshuab.
5. Koj puas muaj qhov kev xeem thiab tshuaj xyuas?
Yog, peb tuaj yeem pab kom tau txais daim ntawv tshaj tawm xeem rau cov khoom lag luam thiab daim ntawv tshaj tawm kev tshuaj xyuas lub Hoobkas.
