Khoom Taw Qhia
A40Ex-V, tag nrho cov kuab tshuaj tsis siv neeg rov ua kom rov ua dua tshiab tau tsim los rau qhov nruab nrab ntawm cov organic hnyav rov qab. Tsim-nyob rau hauv Tsis siv neeg kaw lus system thiab Lub tshuab nqus tsev pab rau rov qab tsis siv neeg. Tilting-type thiab air-cooled condensing system, kev nyab xeeb qauv tsim los ntawm Suav cov txheej txheem pov thawj tawg (CNEX: Ex d IIB T2 Gb, daim ntawv pov thawj No. CNEx16.2109X) thiab European tus qauv (ATEX). Tom qab ua kom txias thiab txias rau qhov sib thooj 2.5 teev, ntxuav cov kuab tshuaj organic yuav npaj rau rov siv dua.
A40Ex-V cov tshuab ua cawv cawv rov qab tsim nyog rau qhov nruab nrab ntawm cov organic hnyav kom rov ua dua tshiab. Lub peev xwm niaj hnub ntawm A40Ex-V nyob ib puag ncig 300L los ntawm kev ua haujlwm 24 teev.
Duab Duab
 |  |

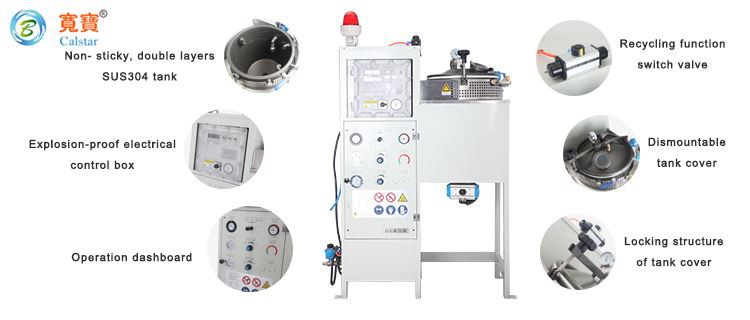

Cov duab ntxaws
Cov ntaub ntawv qhia
Lub ntim tawm tswv yim | 40 L | Ntev | 1124 hli |
Peev Xwm ntawm Tank | 55 L | Dav | 730 hli |
Muaj peev xwm hloov cov roj cua sov | 21 L | Qhov siab | 1378 hli |
Lub hwj chim ntawm lub rhaub | 4.0 KWG | Qhov hnyav | 165 KWG |
Fais fab kiv cua | 0.09 KWG | Temp. ntawm kev ua haujlwm | 50~190 °C |
Max zog | 4.2 KWG | Qhov zoo tshaj chav sov. | 5~30 °C |
Max tam sim no | 19.09 A | Suab nrov | cav 65db. |
Fais fab mov | 220V AC/50 HZ | Voltage ntawm chav tswj | 24 V DC |
Cua sov txoj kev | Indirect cua sov los ntawm tshav kub hloov roj | Lub sij hawm voj voog | ncig 2.5 teev |
Tus nqi rov zoo | 95% | Cua txias | Cua txias |
Hnyav cov tswv yim | Tsis siv neeg tawm tswv yim | Cov ntaub ntawv ntawm rooj plaub | Carbon hlau nrog xim, lossis SUS304 |
Chav tsev nqus tsev | Ua-hauv Lub Tshuab Nqus Tsev | Khoom ntawm lub tank | SUS304, ob txheej |
NCO TSEG: Cov txiaj ntsig tau teev tseg saum toj no yog nyob rau hauv cov xwm txheej zoo hauv chav kuaj, tsuas yog rau koj siv. Cov ntaub ntawv muaj tiag yuav muaj qhov sib txawv me ntsis vim qhov sib txawv ntawm cov ntsiab lus pov tseg, cov ntsiab lus kub ntawm qhov hnyav, chav sov, viscosity thiab lwm yam.
Daim ntawv teev cov tshuaj hnyavlos ntawm thinner hnyav distiller
8 cov txiaj ntsig ntawm cov khoom siv ua kom cov kua dej txias
Nta Tseem Ceebntawm cov hnyav txuag
Ntim thiab Xa
Ntim
1. Seaworthy txheem ntoo lub thawv.
Kev xa khoom
1. 5 hnub tom qab them nyiaj yog cov khoom siv hauv Tshuag, lossis 30 hnub tom qab them nyiaj yog cov khoom siv kho.
Tuam txhab profile
Ntawv pov thawj
Peb cov neeg siv khoom
FAQ
1. Koj puas tuaj yeem xa koj lub tshuab mus rau qhov chaw nyob hauv Suav teb?
Peb muaj lwm cov khoom xa tuaj ua ke nyob ntawd.
Muaj tseeb peb tuaj yeem xa lub tshuab mus rau txhua qhov chaw hauv Suav teb.
2. Them tus nqi thauj khoom tsis yooj yim rau peb, koj puas tuaj yeem saib xyuas kev thauj khoom?
Muaj tseeb peb ua tau. Tom qab ntawd cov lus pauv pauv mus rau CFR.
3. Peb lub tebchaws yog lub tebchaws hauv tebchaws, txoj kev xa khoom twg yuav zoo dua?
Hauv qhov no, peb yuav hais qhia kev xa av los ntawm kev tsheb nqaj hlau lossis tsheb thauj khoom.
4. Koj puas muab kev pabcuam piv txwv?
Thov txim, peb cov khoom tseem ceeb yog lub tshuab rov qab hnyav. Yog li peb tsis muab cov kev pabcuam piv txwv.
5. Kuv tuaj yeem tau txais cov ntaub ntawv qhia khoom nyob qhov twg?
Koj tuaj yeem hla peb lub vev xaib' www.solventrecyclingsystem.com', lossis xa email rau' kuan@calstar.cn'' alisa@calstar.cn' kom paub meej ntxiv.
