Khoom Taw Qhia

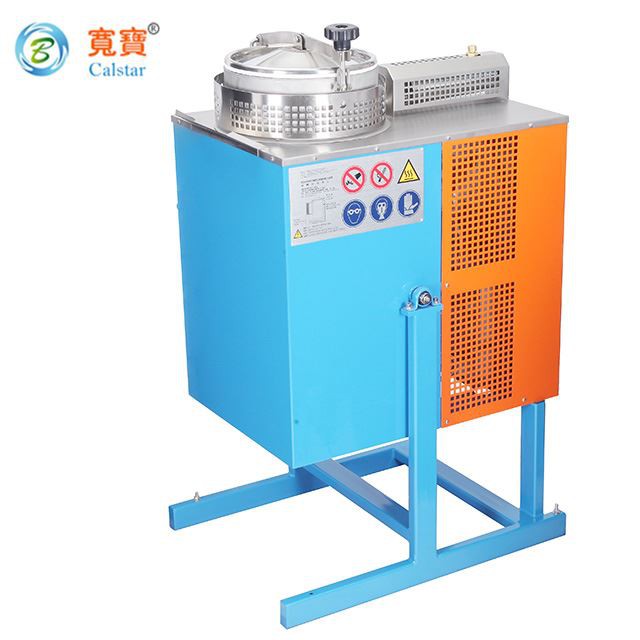

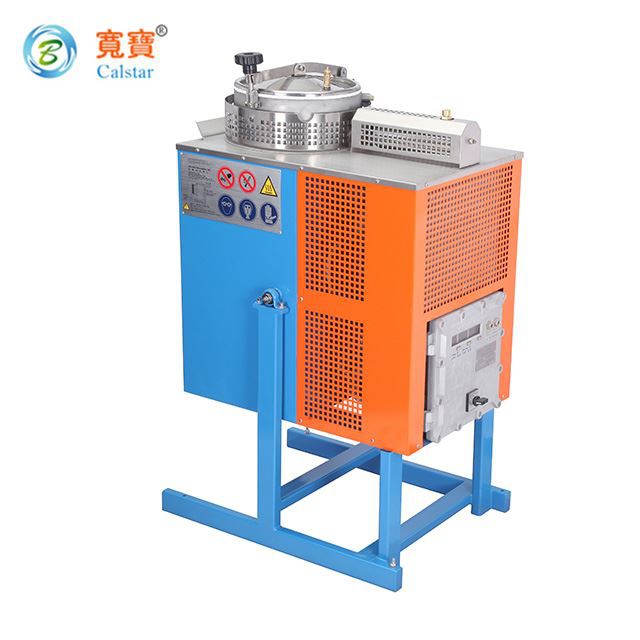

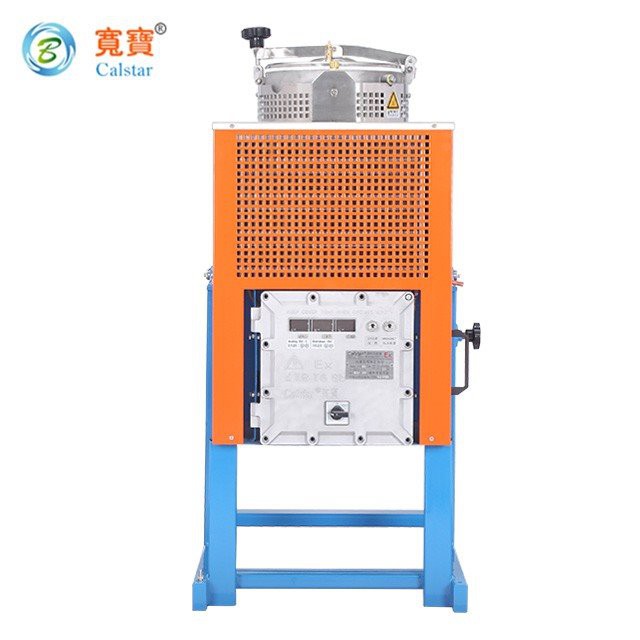

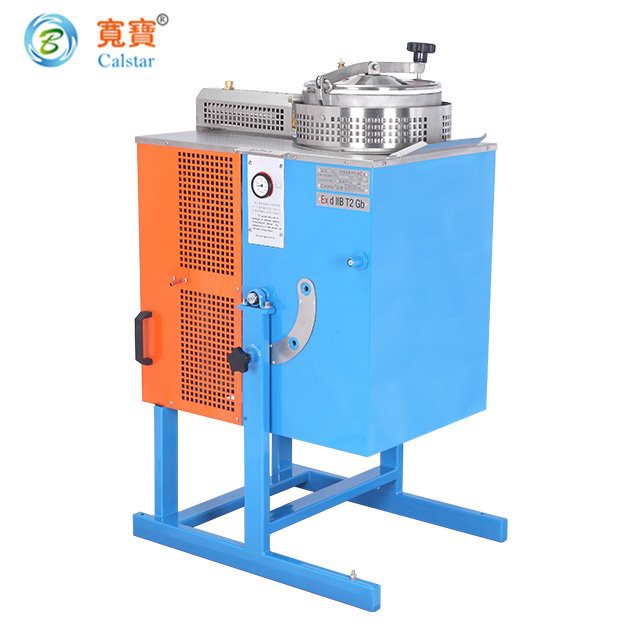

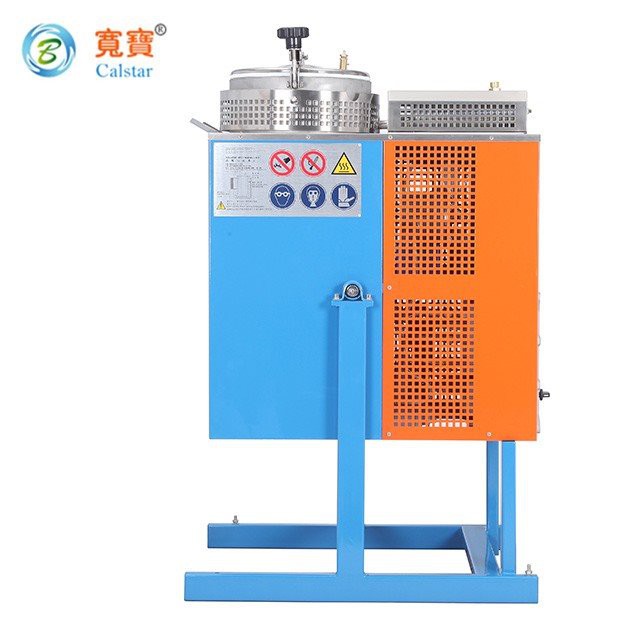

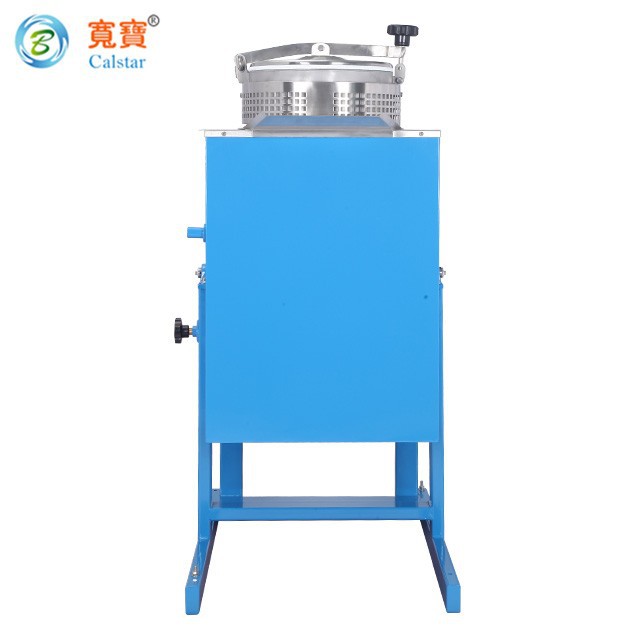

A30Ex, rov ua haujlwm rau cov kuab tshuaj rau cov tshuaj organic hnyav rov qab los. Tilting-type and air-cooled condensing system, kev nyab xeeb qauv tsim los ntawm Suav tawg-pov thawj tus qauv (CNEX: Ex d IIB T2 Gb, daim ntawv pov thawj No. CNEx16.2110X) thiab European tus qauv (ATEX). Tom qab ua kom txias thiab txias rau qhov sib thooj 2.5 teev, ntxuav cov kuab tshuaj organic yuav npaj rau rov siv dua.
A30Ex cov txheej txheem rov ua haujlwm rau cov kuab tshuaj yog qhov tsim nyog rau qhov hnyav ntawm cov organic hnyav kom rov ua dua tshiab. Thiab nws lub peev xwm niaj hnub yog 240L los ntawm kev ua haujlwm 24 teev.
Duab Duab
 |  |

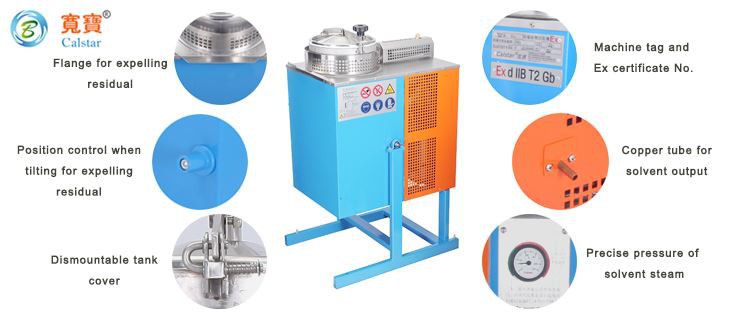

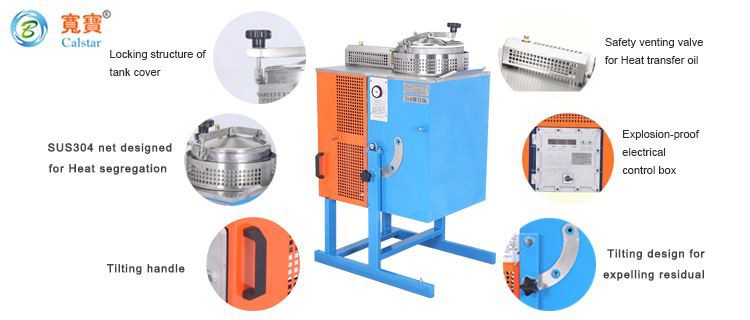

Cov duab ntxaws
Cov ntaub ntawv qhia
Imput ntim | 32 L | Ntev | 825 hli |
Peev Xwm ntawm Tank | 46 L | Dav | 638 hli |
Muaj peev xwm hloov cov roj cua sov | 15.5 L | Qhov siab | 1280 hli |
Lub hwj chim ntawm lub rhaub | 4.0 KWG | Qhov hnyav | 122kg ua |
Fais fab kiv cua | 0.09 KWG | Temp. ntawm kev ua haujlwm | 50~190 °C |
Max zog | 4.2 KWG | Qhov zoo tshaj chav sov. | 5~30 °C |
Max tam sim no | 19.1 A | Suab nrov | cav 65db |
Fais fab mov | 220V AC/50 HZ | Voltage ntawm chav tswj | 24 V DC |
Cua sov txoj kev | Indirect cua sov los ntawm tshav kub hloov roj | Lub sij hawm voj voog | ncig 2.5 teev |
Tus nqi rov zoo | 95% | Cua txias | Cua txias |
Hnyav imput | Phau ntawv (tsis siv neeg imput chav yog ntxiv) | Cov ntaub ntawv ntawm rooj plaub | Carbon hlau nrog xim, lossis SUS304 |
Chav tsev nqus tsev | Tsis muaj (kev xaiv ntxiv) | Khoom ntawm lub tank | SUS304, ob txheej |
NCO TSEG: Cov txiaj ntsig tau teev tseg saum toj no yog nyob rau hauv cov xwm txheej zoo hauv chav kuaj, tsuas yog rau koj siv. Cov ntaub ntawv muaj tiag yuav muaj qhov sib txawv me ntsis vim qhov sib txawv ntawm cov ntsiab lus pov tseg, cov ntsiab lus kub ntawm qhov hnyav, chav sov, viscosity thiab lwm yam.
Daim ntawv teev cov tshuaj hnyavlos ntawm cov tshuaj ua ub ua dua tshiab
8 cov txiaj ntsig ntawm qhov hnyav rov qab cog
Nta Tseem Ceebntawm qhov hnyav distillation system
Ntim thiab Xa
Ntim
1. Seaworthy txheem ntoo lub thawv.
Kev xa khoom
1. 5 hnub tom qab them nyiaj yog cov khoom siv hauv Tshuag, lossis 30 hnub tom qab them nyiaj yog cov khoom siv kho.
Tuam txhab profile
Ntawv pov thawj
Peb cov neeg siv khoom
FAQ
1. Kuv muaj tus neeg yuav khoom hauv Suav teb, kuv puas tuaj yeem them nrog RMB?
Yog lawm, koj tuaj yeem them nrog RMB.
2. Koj puas muaj daim ntawv pov thawj UL?
Thov txim, peb tsis muaj daim ntawv pov thawj UL.
3. Kuv puas tuaj yeem kho cov ntaub ntawv ntawm cov kuab tshuaj rov ua haujlwm?
Tseeb, peb muaj cov pa roj carbon hlau thiab cov hlau tsis muaj xim rau cov neeg siv khoom xaiv.
4. Ntev npaum li cas yuav tsum hloov cov khoom siv?
Hloov cov roj cua sov yuav tsum tau hloov txhua txhua 1000 teev. Lub foob-feem ntau tuaj yeem siv rau 2 ~ 3 xyoos nrog kev saib xyuas kom raug.
5. Koj puas muaj chaw ua haujlwm nyob txawv tebchaws?
Yog, peb muaj chaw ua haujlwm hauv Asmeskas thiab Taiwan.
