Khoom Taw Qhia

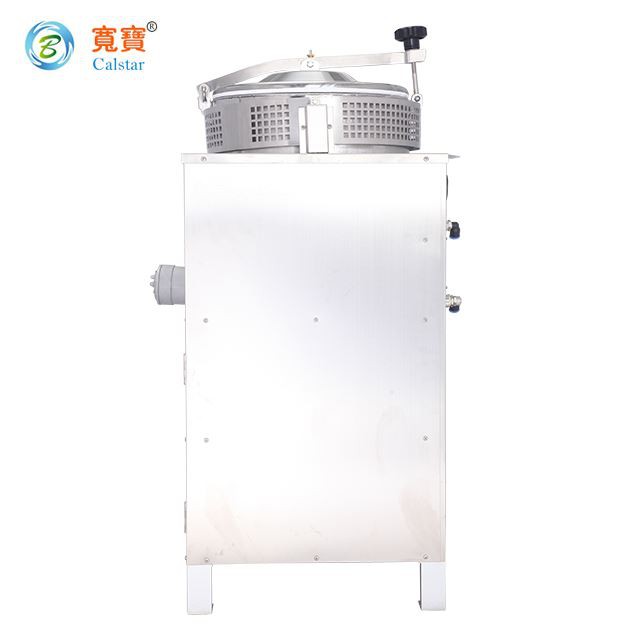

B25Ex, tshwj xeeb tshaj yog tsim cov khoom siv hlau tsis huv rau cov khoom lag luam me me rau cov organic hnyav rov qab los. Ob txheej txheej tank thiab dej txias ua kom txias, cov qauv ruaj ntseg tau tsim los ntawm Suav cov txheej txheem pov thawj tawg (CNEX: Ex d IIB T2 Gb, daim ntawv pov thawj No. CNEx16.2113X) thiab European tus qauv (ATEX). Tom qab ua kom txias thiab txias rau qhov sib thooj 2.5 teev, ntxuav cov kuab tshuaj organic yuav npaj rau rov siv dua.
B25Ex cov kuab tshuaj rov ua dua tshiab yog tsim rau me me ntawm cov organic hnyav kom rov ua dua tshiab. Nws lub peev xwm niaj hnub yog 150L los ntawm kev ua haujlwm 24 teev.
Duab Duab
 |  |
Cov duab ntxaws
Cov ntaub ntawv qhia
Imput ntim | 25 L | Ntev | 587 hli |
Peev Xwm ntawm Tank | 40 L | Dav | 827 hli |
Muaj peev xwm hloov cov roj cua sov | 18 L | Qhov siab | 1130 hli |
Lub hwj chim ntawm lub rhaub | 3.0 KWG | Qhov hnyav | 73kg ua |
Max zog | 3.1 KWG | Temp. ntawm kev ua haujlwm | 50~190 °C |
Max tam sim no | 14.1 A | Qhov zoo tshaj chav sov. | 5~30 °C |
Fais fab mov | 220V AC/50 HZ | Suab nrov | cav 50db |
Tus nqi rov zoo | 95% | Voltage ntawm chav tswj | 24 V DC |
Cua sov txoj kev | Indirect cua sov los ntawm tshav kub hloov roj | Lub sij hawm voj voog | ncig 2.5 teev |
Ntws dej txias | & gt; 120 L/H | Cua txias | Dej txias |
Max siab ntawm Condenser | 30 Pub | Temp. ntawm dej txias | 25 ° C pom zoo |
Hnyav imput | Los ntawm txhais tes (tsis siv neeg lub tsev imput yog muaj) | Kev Ua Haujlwm Temp. ntawm Condenser | -160°C~+200°C |
Chav tsev nqus tsev | Tsis muaj (kev xaiv ntxiv) | Cov ntaub ntawv ntawm rooj plaub | Carbon hlau nrog xim, lossis SUS304 |
Khoom ntawm lub tank | SUS304, ob txheej |
NCO TSEG: Cov txiaj ntsig tau teev tseg saum toj no yog nyob rau hauv cov xwm txheej zoo hauv chav kuaj, tsuas yog rau koj siv. Cov ntaub ntawv muaj tiag yuav muaj qhov sib txawv me ntsis vim qhov sib txawv ntawm cov ntsiab lus pov tseg, cov ntsiab lus kub ntawm qhov hnyav, chav sov, viscosity thiab lwm yam.
Daim ntawv teev cov tshuaj hnyavlos ntawm cov khoom siv rov ua dua tshiab
8 cov txiaj ntsig ntawm qhov hnyav rov qab siv tshuab
Nta Tseem Ceebntawm qhov hnyav distillation machinery
Ntim thiab Xa
Ntim
1. Seaworthy txheem ntoo lub thawv.
Kev xa khoom
1. 5 hnub tom qab them nyiaj yog cov khoom siv hauv Tshuag, lossis 30 hnub tom qab them nyiaj yog cov khoom siv kho.
Tuam txhab profile
Ntawv pov thawj
Peb cov neeg siv khoom
FAQ
1. Kuv puas tuaj yeem yog koj tus xa khoom?
Yog, yeej koj ua tau. Tsuas yog xa koj email chaw nyob. Thiab tom qab ntawd peb tuaj yeem tham ntau ntxiv.
2. Kuv tuaj yeem yuav cov khoom siv no nyob qhov twg?
Koj tuaj yeem yuav cov khoom siv no ncaj qha los ntawm peb. Lossis koj tuaj yeem tshawb nrhiav cov khoom siv zoo sib xws hauv koj lub khw lag luam.
3. Kuv tuaj yeem tau txais cov lus hais nrawm tshaj plaws los ntawm koj sab?
Feem ntau cov lus hais yuav xa tuaj rau koj tsis pub dhau 4 teev yog tias koj tuaj yeem qhia peb koj cov ntsiab lus tshwj xeeb thiab cov tseev kom muaj sai li sai tau thaum peb sib tham los ntawm email lossis tham nrog APPs tam sim.
4. Koj tus MOQ yog dab tsi?
MOQ ntawm hnyav tshuab rov qab yog 1 teeb. Thiab MOQ ntawm cov hnab hnyav yog 200 pcs.
5. Koj lub sijhawm ua haujlwm yog dab tsi?
5 hnub tom qab them nyiaj yog cov khoom siv hauv Tshuag, lossis 30 hnub tom qab them nyiaj yuav xav tau rau lub tshuab tsim khoom.
