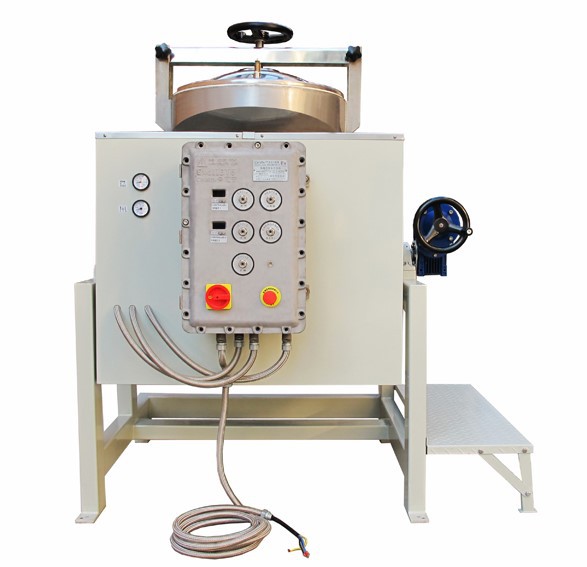

B125Ex distillation rov qab cov cuab yeej yog cov cuab yeej siv tau zoo thiab txhim khu kev qha, uas tau siv dav hauv ntau qhov chaw xws li cov chaw kuaj tshuaj thiab cov chaw tsim khoom.
1, txoj cai distillation
Distillation yog cov txheej txheem ntawm cua sov thiab tswj qhov kub ntawm qhov sib tov kom qee qhov ntawm nws cov khoom ua ntej evaporated thiab tom qab ntawd condensed thiab zoo. B125Ex distillation thiab rov qab cov cuab yeej siv cov roj thermal rau cov cua sov tsis ncaj, thiab los ntawm kev txo qis thiab kev tswj qhov kub, nws tuaj yeem ua tiav qhov siab evaporation thiab kub vaporization tsawg, uas tuaj yeem rov qab tau ntau yam organic solvents thiab txo cov kuab paug pov tseg.
2. Hoobkas ntawm Suav
Kuanbao B125Ex distillation thiab recycling khoom yog tsim los ntawm Tuam Tshoj Hoobkas, cov cuab yeej zoo li stainless hlau, siab precision, zoo nkauj duab, tsim nyog qauv, yooj yim installation, yooj yim lag luam.
3, cov ntaub ntawv khoom siv
Cov ntaub ntawv zoo yog siv nyob rau hauv cov khoom siv los xyuas kom meej lub sijhawm ruaj khov ntawm cov khoom siv. Cov cuab yeej siv qib tswj qhov system thiab ntsuas qhov kub thiab txias muaj qhov siab ntawm automation kom ntseeg tau tias muaj kev nyab xeeb thiab yooj yim ntawm cov khoom siv.
4. Cov kuab tshuaj twg tuaj yeem siv rov qab
B125Ex distillation thiab rov qab cov cuab yeej tsim nyog rau kev rov qab los ntawm ntau yam organic solvents, suav nrog tab sis tsis txwv rau: toluene, xylene, cyclohexanone, isopropyl cawv, chloroform, ethyl acetate, thiab lwm yam. Raws li kev xav tau sib txawv, nws tuaj yeem ua tau raws ntau hom organic hnyav. rov xav tau.
5. Cov khoom siv tsis raug
| Imput ntim | 125 L | Ntev | 1 343mm |
| Lub peev xwm ntawm Tank | 210 L | Dav | 13 30 mm |
| Peev xwm ntawm tshav kub hloov roj | 96 L | Qhov siab | 1 675mm |
| Max zog | 12 kWm | Qhov hnyav | 4 31kg |
| Fais fab mov | 380V AC / 50Hz | Temp. ntawm kev ua haujlwm | 50 ~ 190 degree |
| Tus nqi rov qab | 95% | Zoo tagnrho chav temp. | 5 ~ 30 degree |
| Txoj kev cua sov | Indirect cua sov los ntawm tshav kub hloov roj | Suab nrov | cav 50db |
| Kev khiav dej txias | >150 L/H | Voltage ntawm tswj chav tsev | 220V AC ua |
| Max siab ntawm Condenser | 30 Bar | Lub sijhawm voj voog | ib kb4h |
| Solvent imput | Phau ntawv (tsis siv neeg imput unit yog muaj) | Txias qhov system | Dej txias |
| Lub tshuab nqus tsev | Tsis muaj (kev xaiv ntxiv tau) | Temp. ntawm dej txias | 25 degree pom zoo |
| Khoom siv ntawm lub tank | SUS304, ob txheej txheej | Kev Ua Haujlwm Temp. ntawm Condenser | -160 degree ~ +200 degree |
| Khoom siv | Carbon steel nrog xim, los yog SUS304 |
6. FAQ
1. Dab tsi yog qhov zoo ntawm Kuanbao B125Ex distillation thiab recycling khoom?
A: Ua tau zoo, txhim khu kev qha, txuag hluav taws xob, nyab xeeb, yooj yim rau kev khiav lag luam, tsis tshua muaj nqi txij nkawm.
2. Cov kuab tshuaj organic twg tuaj yeem rov qab tau?
A: Kuanbao B125Ex distillation thiab cov khoom siv rov qab tuaj yeem rov qab tau ntau yam organic solvents, suav nrog toluene, xylene, cyclohexanone, isopropyl cawv, chloroform, ethyl acetate, thiab lwm yam.
3. Cov khoom siv dab tsi hauv cov khoom siv?
A: Cov khoom siv zoo corrosion-resistant yog siv rau hauv cov khoom siv los xyuas kom meej tias cov khoom tsis raug puas tsuaj rau lub sijhawm ntev.
4. Dab tsi yuav tsum tau sau tseg txog cov khoom siv?
A: Khaws cov khoom kom huv si thaum siv, tswj thiab xyuas cov cuab yeej tsis tu ncua, thiab ua raws li cov cai tswj kev nyab xeeb kom tsis txhob muaj ntau dhau.
