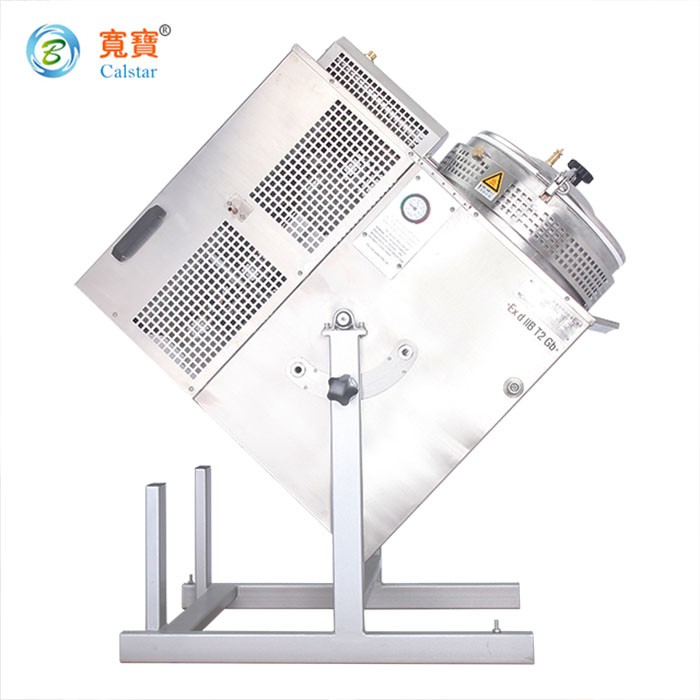

A60Ex NMP cov khoom siv rov ua dua tshiab yog cov khoom siv rov ua dua tshiab rau N-methylpyrrolidone (NMP) pov tseg. NMP yog cov organic hnyav, dav siv hauv hluav taws xob, tshuaj, tshuaj thiab lwm yam haujlwm. Vim tias nws cov solubility zoo thiab tshuaj lom neeg ruaj khov, NMP tau maj mam hloov qee cov kuab tshuaj lom, xws li benzene, thiab kuj zoo rau ib puag ncig thiab tib neeg kev noj qab haus huv.
Hauv daim ntawv thov NMP, peb tseem ntsib qhov teeb meem ntawm NMP emission rau ib puag ncig. Kev tso tawm ntawm NMP yuav ua paug rau ib puag ncig xws li dej, av thiab huab cua, thiab ua rau muaj kev phom sij rau ecosystem thiab tib neeg kev noj qab haus huv. Yog li, kev rov ua dua ntawm NMP yog qhov tseem ceeb heev.
Tshuab parameter
| Imput ntim | 60 L | Ntev | 925mm ua |
| Lub peev xwm ntawm Tank | 80 L | Dav | 6 38mm |
| Peev xwm ntawm tshav kub hloov roj | 24 L | Qhov siab | 1280 hli |
| Lub zog ntawm lub rhaub | 5. 0 KW | Qhov hnyav | 1 36 KG |
| Lub zog kiv cua | 0.09 KW | Temp. ntawm kev ua haujlwm | 50 ~ 190 degree |
| Max zog | 5.2 kWs | Zoo tagnrho chav temp. | 5 ~ 30 degree |
| Max tam sim no | 23.6 A | Suab nrov | cav 65db |
| Fais fab mov | 220V AC / 50HZ | Voltage ntawm tswj chav tsev | 24V dc tso |
| Txoj kev cua sov | Indirect cua sov los ntawm tshav kub hloov roj | Lub sijhawm voj voog | ib ncig ntawm 3 teev |
| Tus nqi rov qab | 95% | Txias qhov system | Cua txias |
| Solvent imput | Phau ntawv (tsis siv neeg imput unit yog addable) | Khoom siv | Carbon steel nrog xim, los yog SUS304 |
| Lub tshuab nqus tsev | Tsis muaj (kev xaiv ntxiv tau) | Khoom siv ntawm lub tank | SUS304, ob txheej txheej |
txoj cai
Lub A60Ex NMP rov qab cov cuab yeej siv cov txheej txheem kub distillation kom rov qab tau cov NMP pov tseg. Nws tuaj yeem evaporate cov khib nyiab NMP sai sai rau hauv cov pa roj, thiab tau txais cov purity siab NMP tom qab txias thiab condensation. Ntawm lawv, A60Ex cov cuab yeej tau dhau lub teb chaws tawg-pov thawj ntawv pov thawj, muaj kev nyab xeeb thiab txhim khu kev qha nyob rau hauv qhov chaw tawg thiab tawg.
Kev phom sij ntawm NMP
NMP yog cov organic sib xyaw ua ke, thiab kev raug NMP mus sij hawm ntev tuaj yeem ua rau muaj teeb meem kev noj qab haus huv hauv lub paj hlwb thiab kev ua me nyuam, thiab lwm yam. Yog tias NMP raug tso tawm rau hauv ib puag ncig, nws yuav ua rau dej, av, huab cua thiab lwm qhov chaw, thiab ua rau muaj kev puas tsuaj rau ib puag ncig ecological thiab tib neeg kev noj qab haus huv.
Qhov tseem ceeb ntawm NMP recycling
Kev rov qab los ntawm NMP yog qhov tseem ceeb heev rau kev tiv thaiv ib puag ncig thiab kev txuag nyiaj txiag. Kev siv A60Ex NMP cov khoom siv rov ua dua tshiab tuaj yeem tsis tsuas yog rov qab NMP cov khoom pov tseg thiab txo cov khoom pov tseg, tab sis kuj ua rau cov tuam txhab txuag cov ntaub ntawv raw thiab tsim cov khoom muaj nqis dua.
Ib lub tshuab nrog ntau lub zog
A60Ex NMP rov qab tsev kuj tuaj yeem siv rau acetone purification. Acetone yog ib qho uas nquag siv cov kuab tshuaj organic, thiab feem ntau yog siv los ua cov tshuaj ntxuav thiab cov tshuaj zas xim. Tab sis acetone nyob rau hauv cov txheej txheem ntau lawm, yuav ua paug los ntawm impurities, cuam tshuam rau qhov zoo ntawm cov khoom. Kev siv A60Ex NMP cov khoom siv rov ua dua tshiab tuaj yeem ua kom huv huv acetone, txhim kho cov khoom zoo thiab txo cov nqi tsim khoom, thaum tseem txo cov khoom pov tseg.
Cov lus qhia txog kev ua haujlwm ntawm cov khoom siv
Kev ua haujlwm ntawm cov cuab yeej siv tau yooj yim heev, tsuas yog yuav tsum muab cov khib nyiab NMP tso rau hauv cov khoom siv, kho qhov kub thiab txias, tuaj yeem ua tiav tsis siv neeg rov qab. Nyob rau hauv tus txheej txheem ntawm kev siv, yuav tsum tau them nyiaj mloog mus rau lub overhaul thiab txij nkawm ntawm cov cuab yeej los xyuas kom meej lub cev ua hauj lwm ntawm cov cuab yeej thiab cov discharged tshuaj raws li ib puag ncig tiv thaiv qauv.
FAQ:
1. Cov khoom siv rov ua dua A60Ex NMP ua haujlwm li cas?
Lub A60Ex NMP rov qab cov cuab yeej siv cov txheej txheem kub distillation kom rov qab tau cov NMP pov tseg. Nws tuaj yeem evaporate cov khib nyiab NMP sai sai rau hauv cov pa roj, thiab tau txais cov purity siab NMP tom qab txias thiab condensation.
2. Dab tsi yog qhov teeb meem ntawm NMP rau ib puag ncig thiab tib neeg lub cev?
Kev kis tau mus ntev rau NMP tuaj yeem ua rau muaj teeb meem kev noj qab haus huv hauv lub paj hlwb thiab kev ua me nyuam, thiab lwm yam. Yog tias NMP raug tso tawm rau hauv ib puag ncig, nws yuav ua rau dej, av, huab cua thiab lwm qhov chaw, thiab ua rau muaj kev puas tsuaj rau ib puag ncig ecological thiab tib neeg kev noj qab haus huv.
3. Dab tsi ntxiv tuaj yeem siv A60Ex NMP cov khoom siv rov ua dua tshiab rau?
A60Ex NMP cov khoom siv rov qab tuaj yeem siv rau kev ua kom huv ntawm acetone, txhim kho cov khoom zoo thiab txo cov nqi tsim khoom.
