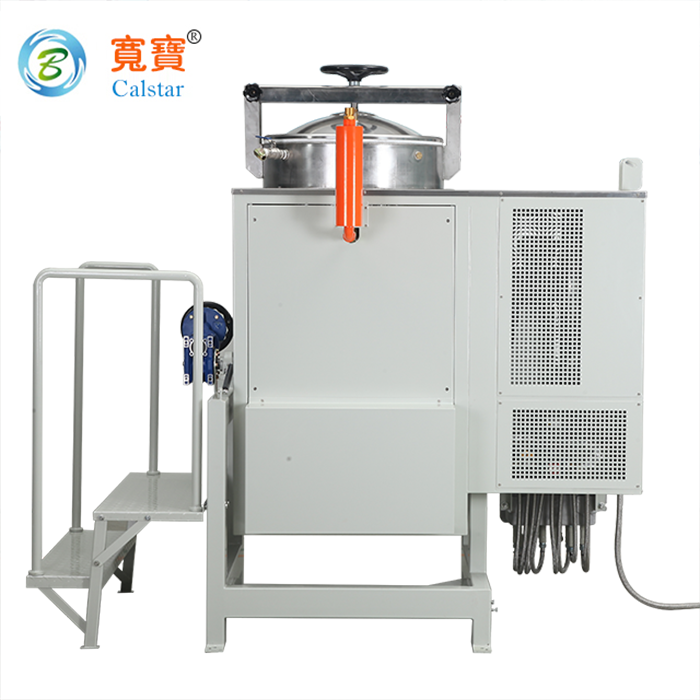

A200Ex IPA purification cov cuab yeej yog cov khoom siv methanol distillation zoo, uas yog siv rau ntau yam kev siv, xws li hauv kev tsim cov khoom siv hluav taws xob, cov khoom siv ua kua siv lead ua, cov hnub ci vaj huam sib luag thiab lwm yam.
Ua ntej, rov ua txoj cai
A200Ex IPA purification cov cuab yeej siv ultra-siab kub pyrolysis thev naus laus zis los ua kom sov cov methanol uas muaj impurities rau qhov kub thiab txias thiab tom qab ntawd cais cov impurities, thiab tom qab ntawd los ntawm kev ua kom txias, purification thiab lwm yam txheej txheem, kom nws muaj peev xwm ua tau raws li cov kev cai ntawm siab purity methanol. Nws txoj cai rov qab zoo ib yam li distillation, tab sis siv high-tech txhais tau tias zoo heev txhim kho kev sib cais thiab ua tiav cov kev xav tau purity ntau dua.
Thib ob, cov ntaub ntawv khoom siv
1, cov txheej txheem kev ua haujlwm ntawm cov cuab yeej siv los tswj lub siab tsim nyog los xyuas kom meej kev sib cais.
2, cov cuab yeej siv yuav tsum tau siv ua ntej qhov tsim nyog tshuaj xyuas kom ntseeg tau tias cov cuab yeej siv tau zoo.
3, nyob rau hauv tus txheej txheem ntawm kev siv, yuav tsum tau them nyiaj mloog mus rau kev huv si ntawm ib puag ncig ntawm cov khoom kom tsis txhob impurities polluting cov khoom.
4, cov khoom siv yuav tsum tau muab ntxuav thiab khaws cia rau hauv lub sijhawm tom qab siv los txuas lub neej ntawm cov khoom siv.
thib peb, Cov ntaub ntawv khoom siv
| Imput ntim | 225 L | Ntev | 2100 hli |
| Lub peev xwm ntawm Tank | 330 L | Dav | 11 30 mm |
| Peev xwm ntawm tshav kub hloov roj | 96 L | Qhov siab | 1950 hli |
| Lub zog ntawm lub rhaub | 18 0 KW | Qhov hnyav | 6 29kq |
| Lub zog kiv cua | 0.37 KW | Temp. ntawm kev ua haujlwm | 50 ~ 190 degree |
| Max zog | 18.8 KW TSI | Zoo tagnrho chav temp. | 5 ~ 30 degree |
| Max tam sim no | 28.5A | Suab nrov | cav 75db |
| Fais fab mov | 380V AC / 50Hz | Voltage ntawm tswj chav tsev | 220V AC ua |
| Txoj kev cua sov | Indirect cua sov los ntawm tshav kub hloov roj | Lub sijhawm voj voog | ib ncig 4 teev |
| Tus nqi rov qab | 95% | Txias qhov system | Cua txias |
| Solvent imput | Phau ntawv (tsis siv neeg imput unit yog addable) | Khoom siv | Carbon steel nrog xim, los yog SUS304 |
| Lub tshuab nqus tsev | Tsis muaj (kev xaiv ntxiv tau) | Khoom siv ntawm lub tank | SUS304, ob txheej txheej |
Plaub, lub luag haujlwm ntawm lub tshuab ntxhua khaub ncaws hauv cov khoom siv
Lub gasket nyob rau hauv A200Ex IPA purification cog yog ib feem uas ua raws li lub foob thiab kev txhawb nqa. Lub sealing muaj nuj nqi yog kom tsis txhob muaj cov xau ntawm methanol uas evaporates ntawm qhov kub thiab txias, thaum lub zog txhawb nqa yog los xyuas kom meej cov khoom ruaj khov. Cov khoom siv ntawm lub tshuab ntxhua khaub ncaws yuav tsum muaj qhov kub thiab txias tiv thaiv kom ntseeg tau tias cov khoom siv ua haujlwm zoo.
thib tsib, FAQ
1. Yuav ua li cas ntxuav cov cuab yeej?
A: Cov khoom siv tu tuaj yeem siv cawv lossis nitrogen, ua tib zoo saib xyuas kom tsis txhob siv cov kuab tshuaj organic.
2, yuav ua li cas kom ntseeg tau tias cov cuab yeej zoo li qub?
A: Kev kuaj xyuas yuav tsum tau ua ua ntej siv cov khoom siv, xws li tshuaj xyuas qhov nruj ntawm cov cuab yeej thiab seb puas muaj impurities.
3. Yuav ua li cas txog lub neej kev pab cuam ntawm cov khoom siv?
A: Lub neej kev pab cuam ntawm cov cuab yeej nyob ntawm ntau yam xws li kev siv ib puag ncig, kev siv ntau zaus thiab kev saib xyuas.
