Khoom Taw Qhia

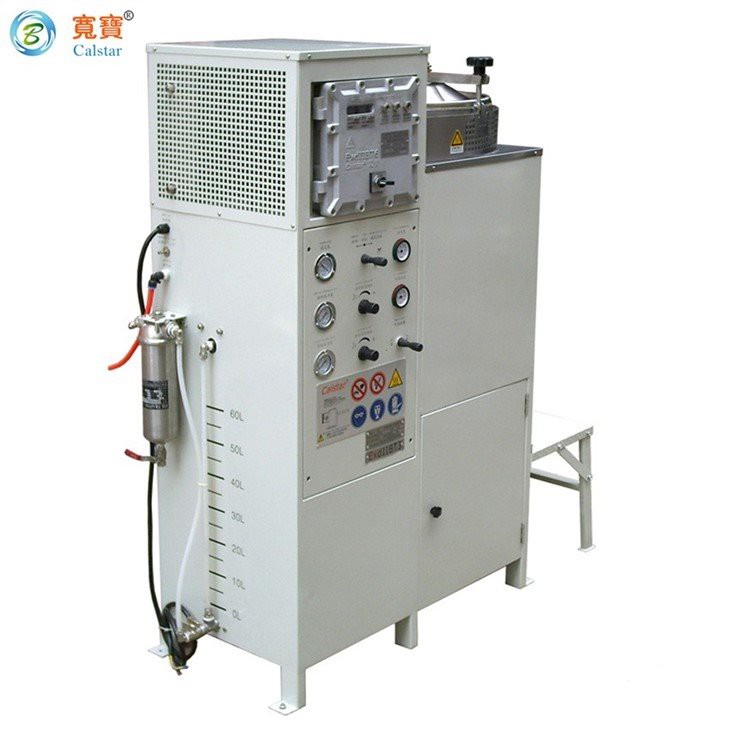

A25Ex-V, cov cuab yeej siv tshuaj ethanol distillation tau tsim los rau qhov me me ntawm cov organic hnyav rov qab. Tsim-nyob rau hauv Tsis siv neeg kaw lus system thiab Lub tshuab nqus tsev pab rau rov qab tsis siv neeg. Tilting-type thiab air-cooled condensing system, kev nyab xeeb qauv tsim los ntawm Suav cov txheej txheem pov thawj tawg (CNEX: Ex d IIB T2 Gb, daim ntawv pov thawj No. CNEx16.2109X) thiab European tus qauv (ATEX). Tom qab ua kom txias thiab txias rau qhov ze 2 teev, ntxuav cov kuab tshuaj organic yuav npaj rau rov siv dua.
A25Ex-V lub tshuab tawg pov thawj rov qab tsim nyog rau qhov me me ntawm cov organic hnyav kom rov ua dua tshiab. Nws muaj peev xwm lis 250L cov kuab tshuaj hnyav txhua hnub los ntawm kev ua haujlwm 24 teev.
Duab Duab
 |  |
Cov ntaub ntawv qhia
Lub ntim tawm tswv yim | 25 L | Ntev | 1124 hli |
Peev Xwm ntawm Tank | 28 L | Dav | 730 hli |
Muaj peev xwm hloov cov roj cua sov | 12 L | Qhov siab | 1256 hli |
Lub hwj chim ntawm lub rhaub | 3.0 KWG | Qhov hnyav | 14 4 KG |
Fais fab kiv cua | 0.09 KWG | Temp. ntawm kev ua haujlwm | 50~190 °C |
Max zog | 3.2 KWG | Qhov zoo tshaj chav sov. | 5~30 °C |
Max tam sim no | 14.5 A | Suab nrov | cav 65db. |
Fais fab mov | 220V AC/50 HZ | Voltage ntawm chav tswj | 24 V DC |
Cua sov txoj kev | Indirect cua sov los ntawm tshav kub hloov roj | Lub sij hawm voj voog | ncig 2 teev |
Tus nqi rov zoo | 95% | Cua txias | Cua txias |
Hnyav cov tswv yim | Tsis siv neeg tawm tswv yim | Cov ntaub ntawv ntawm rooj plaub | Carbon hlau nrog xim, lossis SUS304 |
Chav tsev nqus tsev | Ua-hauv Lub Tshuab Nqus Tsev | Khoom ntawm lub tank | SUS304, ob txheej |
NCO TSEG: Cov txiaj ntsig tau teev tseg saum toj no yog nyob rau hauv cov xwm txheej zoo hauv chav kuaj, tsuas yog rau koj siv. Cov ntaub ntawv muaj tiag yuav muaj qhov sib txawv me ntsis vim qhov sib txawv ntawm cov ntsiab lus pov tseg, cov ntsiab lus kub ntawm qhov hnyav, chav sov, viscosity thiab lwm yam.
Daim ntawv teev cov tshuaj hnyavlos ntawm lub tshuab nqus tsev distillation
8 cov txiaj ntsig ntawm cov cuab yeej nqus dej nqus dej
Nta Tseem Ceebntawm cov khoom siv lim dej ua kom nyias nyias
Ntim thiab Xa
Ntim
1. Seaworthy txheem ntoo lub thawv.
Kev xa khoom
1. 5 hnub tom qab them nyiaj yog cov khoom siv hauv Tshuag, lossis 30 hnub tom qab them nyiaj yog cov khoom siv kho.
Tuam txhab profile
Ntawv pov thawj
Peb cov neeg siv khoom
FAQ
1. Koj puas tuaj yeem muab cov ntaub ntawv ntsuas ntsuas?
Kiag peb tuaj yeem muab cov ntaub ntawv ntsuas ntsuas, xws li cov hlau tsis muaj steel, carbon hlau thiab lwm yam.
2. Yog tias kuv muaj lwm yam khoom los ntawm Tuam Tshoj, nws puas tuaj yeem xa tag nrho cov khoom ua ke rau kuv?
Ua tau kiag li, koj tuaj yeem qhia peb txog lwm yam khoom thiab cov khoom lag luam. Tom qab ntawd peb yuav nrog lawv thiab daws qhov teeb meem no kom zoo.
3. Dab tsi yog koj cov ntsiab lus feem ntau ntawm kev lag luam thoob ntiaj teb?
Feem ntau peb siv FOB cov ntsiab lus lag luam ua lag luam thoob ntiaj teb.
4. Kev thauj mus los hauv hiav txwv qeeb dhau, koj puas muab kev pabcuam xa khoom sai dua?
Yog, peb tuaj yeem muab kev xa los ntawm huab cua. Tab sis cov khoom thauj yog kim heev. Feem ntau peb tsis hais qhia peb cov neeg siv khoom kom xaiv txoj hauv kev no.
5. Kuv puas tuaj yeem tau txais lub tshuab ua qauv qhia?
Thov txim uas peb tsis tuaj yeem muab cov kev pabcuam piv txwv. Tab sis peb tuaj yeem npaj qhov kev sim ua piv txwv yog tias koj tuaj yeem qhia cov ncauj lus ntxaws txog koj cov tshuaj khib nyiab. Kuj tseem muaj daim ntawv ntsuam xyuas.
