Khoom piav qhia
B25Ex ethanol evaporator yog cov khoom siv ua kom huv si zoo nrog cov txheej txheem dej txias tawg, uas yog siv dav hauv tshuaj, tshuaj thiab lwm yam lag luam. Nws tuaj yeem tshem tawm impurities hauv cov kuab tshuaj los ntawm evaporation thiab condensation, yog li txhim kho cov purity thiab zoo ntawm cov kuab tshuaj.

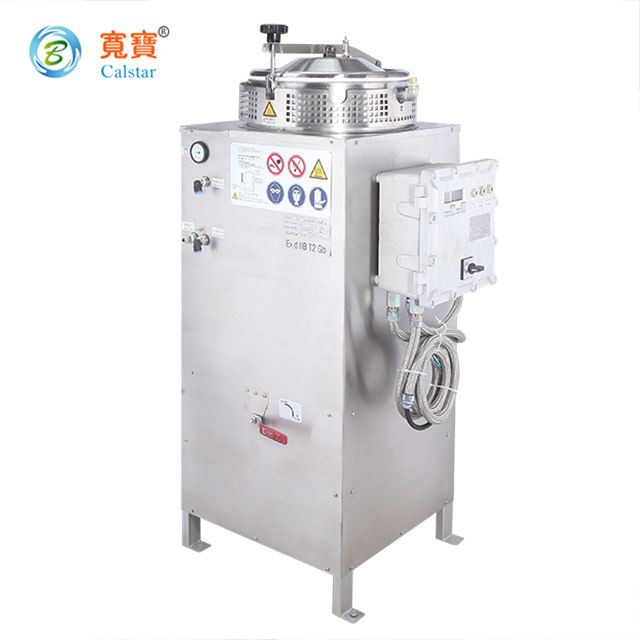

Cov cuab yeej tso saib

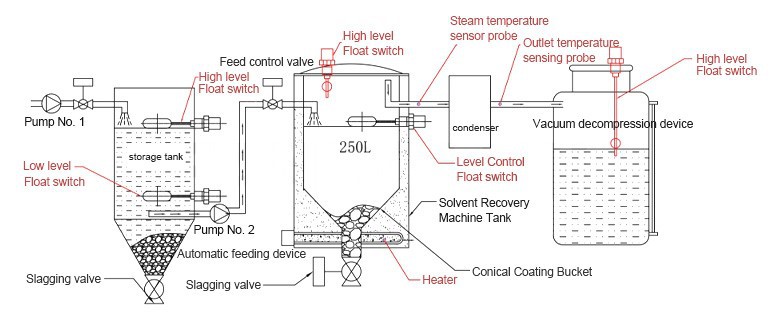

Cov txheej txheem ntawm cov kuab tshuaj purification
Ua ntej purification, cov kuab tshuaj yog rhuab thiab ntxiv rau lub evaporator. Cov kab mob nkag mus rau hauv qab ntawm cov kuab tshuaj thaum nws pib evaporate ntawm qhov kub siab dua. Lub condenser tau txais cov vaporized hnyav vapor, uas condenses rau hauv cov kua thiab tom qab ntawd sau los ntawm cov yeeb nkab sau. Cov txheej txheem no tej zaum yuav discrete los yog tas mus li.
Technical data
| Imput ntim | 25 L | Ntev | 5 87mm |
| Lub peev xwm ntawm Tank | 40 L | Dav | 827mm ua |
| Peev xwm ntawm tshav kub hloov roj | 18 L | Qhov siab | 11 30 mm |
| Lub zog ntawm lub rhaub | 3. 0 KW | Qhov hnyav | 7 3 Kg |
| Max zog | 3.1 KW TSI | Temp. ntawm kev ua haujlwm | 50 ~ 190 degree |
| Max tam sim no | 14.1 A | Zoo tagnrho chav temp. | 5 ~ 30 degree |
| Fais fab mov | 220V AC / 50Hz | Suab nrov | cav 50db |
| Tus nqi rov qab | 95% | Voltage ntawm tswj chav tsev | 24V dc tso |
| Txoj kev cua sov | Indirect cua sov los ntawm tshav kub hloov roj | Lub sijhawm voj voog | ib ncig ntawm 2.5 teev |
| Kev khiav dej txias | >120 L/H | Txias qhov system | Dej txias |
| Max siab ntawm Condenser | 30 Bar | Temp. ntawm dej txias | 25 degree pom zoo |
| Solvent imput | Phau ntawv (tsis siv neeg imput unit yog muaj) | Kev khiav hauj lwm Temp. ntawm Condenser | -160 degree ~ +200 degree |
| Lub tshuab nqus tsev | Tsis muaj (kev xaiv ntxiv tau) | Khoom siv | Carbon steel nrog xim, los yog SUS304 |
| Khoom siv ntawm lub tank | SUS304, ob txheej txheej |
Yuav khaws li cas
Peb yuav tsum nco ntsoov cov hauv qab no los lav cov cuab yeej ua haujlwm tsis tu ncua thiab ua haujlwm ntev:
Ua ntej, xyuas kom cov cuab yeej huv si. Kev tu ntau zaus ntawm cov khoom siv sab nrauv thiab sab hauv yog tsim nyog kom tshem tawm cov av thiab cov pa phem. Evaporators thiab condensers xav tau kev saib xyuas tshwj xeeb vim lawv yog qhov tseem ceeb ntawm cov txheej txheem purifying.
Qhov thib ob yog hloov cov khoom siv tu thiab cov khoom siv raws sijhawm. Vim yog siv sijhawm ntev, ntau yam khoom siv sab hauv tuaj yeem ua rau tsis zoo lossis muaj hnub nyoog dhau sijhawm. Peb yuav tsum ua qhov kev saib xyuas uas yuav tsum tau ua, kho txhua qhov chaw uas yuav tsum tau hloov raws sijhawm, thiab niaj hnub ntsuas qhov xwm txheej ntawm cov tshuab.
Thib peb, saib seb cov cuab yeej siv li cas hauv thaj chaw ib puag ncig. Thaum ua haujlwm ntawm cov cuab yeej siv, nco ntsoov qhov chaw nyob ib puag ncig kom tsis txhob muaj plua plav thiab lwm yam khoom paug tawm ntawm sab hauv, uas tuaj yeem ua rau lub neej ntev thiab txo nws lub peev xwm los ntxuav.
FAQ
Cov cuab yeej siv tau li cas kom huv si?
A: Txhawm rau tiv thaiv kev puas tsuaj thiab txuas ntxiv nws lub neej kev pabcuam, cov khoom siv yuav tsum tau ntxuav ntau zaus thaum siv. Txhawm rau so cov cuab yeej saum npoo av, siv daim ntaub tshiab, mos; tsis txhob siv cov khoom ntse.
Cov cuab yeej tiv thaiv li cas los ntawm kev tawg?
A: Txhawm rau lav qhov ua haujlwm zoo ntawm cov dej txias, cov cuab yeej siv dej txias tawg-pov thawj yog qhov tseem ceeb ntawm kev nyab xeeb uas yuav tsum tau ua kom huv si. Tsis tas li ntawd, txawm tias thaum lub raj xa dej ua haujlwm ntawm qhov kub thiab txias, nws yuav tsum tau ua tib zoo tshuaj xyuas kom ntseeg tau tias kev ua haujlwm zoo ntawm cov dej txias thiab tiv thaiv cov neeg ua haujlwm thiab cov khoom siv kev nyab xeeb. Tsis tas li ntawd, lub raj xa dej yuav tsum yog tawg-pov thawj.
Yuav tsum khaws cov khoom siv li cas?
A: Tej yam khoom siv, xws li lim thiab absorbers, yuav tsum tau hloov sai sai tom qab siv. Cov cuab yeej ua haujlwm yuav raug cuam tshuam thaum qee yam khoom siv hloov pauv. Yog li ntawd, thaum siv cov cuab yeej siv, phau ntawv qhia cov lus qhia yuav tsum tau ua kom ntseeg tau tias cov khoom siv tau hloov pauv raws sijhawm.
Thaum cov khoom siv tsis siv rau lub sijhawm ntev, kuv yuav saib dab tsi?
A: Koj yuav tsum ntxuav lub cuab yeej ua ntej siv nws rau lub sijhawm ntev kom paub tseeb tias nws huv si thiab kom tsis txhob muaj plua plav thiab lwm yam khib nyiab nkag mus rau hauv thiab ua rau nws lub neej luv. Txhawm rau tiv thaiv xeb thiab oxidation, uas ua rau cov khoom siv lub neej ua haujlwm luv, nws tseem yog qhov tseem ceeb los tiv thaiv nws cov khoom siv.
Cim npe nrov: ethanol evaporator dej txias tawg-pov thawj hnyav purifying system, Tuam Tshoj, lwm tus neeg, manufacturers, hoobkas, customized, nqe, pricelist
