A40Ex-V tsis siv neeg cov kuab tshuaj rov qab yog cov cuab yeej siv tau zoo, txhim khu kev qha thiab nyab xeeb rau kev rov qab los ntawm cov kuab tshuaj organic hauv tshuaj, tshuaj, zaub mov thiab lwm yam lag luam.
Piv nrog rau cov pa hnyav rov qab, A40Ex-V muaj qhov sib txawv hauv qab no:
1. Tag nrho tsis siv neeg tswj: A40Ex-V txais kev tswj tsis siv neeg tag nrho, uas tsis tas yuav muaj kev cuam tshuam ntawm phau ntawv, txo qhov kev pheej hmoo ntawm kev nyab xeeb los ntawm tib neeg kev ua haujlwm tsis zoo, thiab txhim kho kev ua haujlwm thiab kev cia siab ntawm kev rov qab los.
2. Kev ua haujlwm siab thiab kev txuag hluav taws xob: A40Ex-V siv cov cuab yeej siv hluav taws xob zoo, uas tuaj yeem ua kom cov purity ntawm cov kuab tshuaj rov qab mus rau ntau dua 95% thiab txo qis kev siv zog ntau.
3. Muaj kev nyab xeeb thiab txhim khu kev qha: A40Ex-V muaj ntau yam kev tiv thaiv kev nyab xeeb, suav nrog dhau voltage, hauv qab voltage, dhau tam sim no, overheating thiab lwm yam kev tiv thaiv kev ua haujlwm kom muaj kev nyab xeeb ntawm cov khoom siv.
4. Kev khiav hauj lwm yooj yim: A40Ex-V lub lag luam interface yog qhov tseeb thiab yooj yim, yooj yim rau kev khiav lag luam thiab tswj, thiab cov neeg siv tuaj yeem teeb tsa rov qab tsis tau yooj yim los ntawm nias cov nyees khawm.

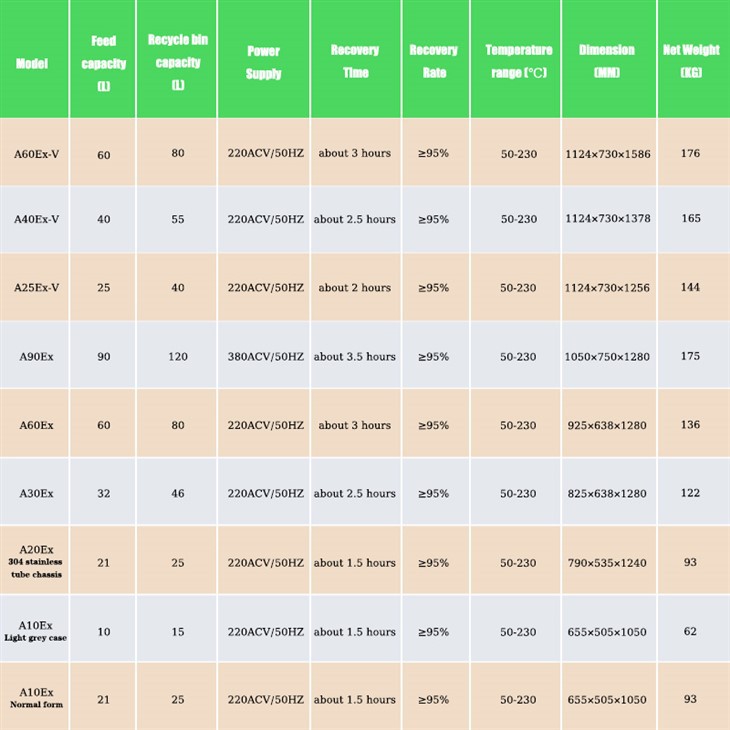

Cov ntaub ntawv khoom siv
| Imput ntim | 40 L | Ntev | 1 124mm |
| Lub peev xwm ntawm Tank | 55 L | Dav | 7 30mm |
| Peev xwm ntawm tshav kub hloov roj | 21 L | Qhov siab | 1 378mm |
| Lub zog ntawm lub rhaub | 4 0 KW | Qhov hnyav | 165 KG |
| Lub zog kiv cua | 0.09 KW | Temp. ntawm kev ua haujlwm | 50 ~ 190 degree |
| Max zog | 4.2 KW TSI | Zoo tagnrho chav temp. | 5 ~ 30 degree |
| Max tam sim no | 19.09 A | Suab nrov | cav 65db |
| Fais fab mov | 220V AC / 50HZ | Voltage ntawm tswj chav tsev | 24V dc tso |
| Txoj kev cua sov | Indirect cua sov los ntawm tshav kub hloov roj | Lub sijhawm voj voog | ib ncig 2.5 h |
| Tus nqi rov qab | 95% | Txias qhov system | Cua txias |
| Solvent imput | Tsis siv neeg imput | Khoom siv | Carbon steel nrog xim, los yog SUS304 |
| Lub tshuab nqus tsev | Build-in Vacuum unit | Khoom siv ntawm lub tank | SUS304, ob txheej txheej |
Rov qab txoj cai
Lub hauv paus ntsiab lus rov qab los ntawm A40Ex-V yog siv cov tshuab condensation kom rov qab cov kuab tshuaj. Los ntawm tig lub nruas thiab yuam kev ncig, cov organic hnyav vapor yog coj mus rau hauv lub condenser, uas yog condensed los ntawm cov tub yees, hloov mus rau hauv cov kua, thiab ces ntws mus rau hauv lub tank cia los ntawm Central Line.
Hauv kev nthuav dav
A40Ex-V muaj ntau yam kev tiv thaiv kev ruaj ntseg, suav nrog kov npo lo lus zais tiv thaiv, tiv thaiv overcurrent, tiv thaiv overvoltage, thiab lwm yam, kom ntseeg tau tias kev ua haujlwm ruaj ntseg thiab ruaj khov ntawm lub cuab yeej.
FAQ:
1. Cov kuab tshuaj organic dab tsi tuaj yeem A40Ex-V rov qab tau?
A: A40Ex-V yog qhov tsim nyog rau kev rov qab los ntawm cov kuab tshuaj organic feem ntau, xws li ethanol, acetone, benzene, toluene, thiab lwm yam.
2. Dab tsi yog qhov rov ua haujlwm ntawm A40Ex-V?
A: Kev rov ua haujlwm ntawm A40Ex-V tuaj yeem ncav cuag ntau dua 99.9%, uas tuaj yeem ua tau raws li feem ntau ntawm cov kev xav tau rov ua dua.
3. A40Ex-V xav tau kev saib xyuas dab tsi?
A: Lub A40Ex-V xav tau kev tu thiab tu kom huv si kom huv si thiab zoo.
Cim npe nrov: tsis siv neeg niaj hnub thiab qib siab hnyav ub tshuab, Tuam Tshoj, lwm tus neeg, manufacturers, hoobkas, customized, nqe, pricelist
